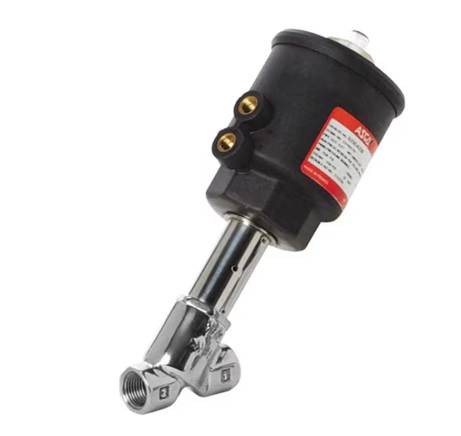

1" ASCO 8290B053 stainless steel normally closed angle body piston valve with 63 mm operator

Highlights

• 1" nominal pipe size with NPT connections
• 2-way normally closed (N/C) angle body piston valve
• Stainless steel body construction provides corrosion resistance
• 63 mm single air pilot operator
• Pilot-operated design with fluid entry under the disc for smooth closing
• 19 Cv flow factor with 1" orifice
• Maximum operating pressure differential of 150 psi
• Maximum fluid temperature of 366°F
• Suitable for air, water, steam, oils and other industrial fluids
